AC Leak Detector

Name: AC Leak Detector
Brand: Changzhou Egret Manufacturing Co., Ltd.

Egret Portable refrigerant detector is a real-time refrigerant gas concentration in the air detection instrument, the product is the first equipped with intelligent light control, gas, temperature, humidity, time, suction pump, alarm, record, data storage as one of the multi-functional refrigerant gas detection and alarm device; When the refrigerant gas under test reaches the preset alarm point, the sound and light alarm will be issued automatically. Portable refrigerant detector adopts intelligent gas detection and sensing technology, the detection results can be produced in 10 seconds, and the measured accuracy is up to 3%.

Inquire Now Pdf

egret

Specifications Features Process FAQ

AC Leak Detector Specifications

refrigerant	CFCs, HCFCs, HCs, HFCs, SF6 etc	CFCs, HFCs, HCs, SF6	CFCs, HCFCs, HCs, HFCs, SF6 etc	CFCs, HCFCs, HCs, HFCs, SF6 etc	CFC, HCFC, HFC, HFO etc	Gas: Propane, Iso_x0002_Butane, Methane	CFC, HCFC, HFC, HFO etc	R744,C02

Sensitivity	6g/year	6g/year	6g/year	6g/year	3g/year	100ppm	3g/year	400-4000PPM
Sensitivity	7	5	7	7	3	3	3	3

Certificate	CE, SAE J1627	CE, SAE J2791	CE, SAE J2791	CE,SAE J2791	CE, SAE J2791, SAE J2913	CE EN61010	CE,SAE J2791,SAE J2913	CE,SAE J2791,SAE J2913
Alarm Level	7	45	7	7	5	5	5	5

Audible Alarm	yes	yes	yes	yes	yes	yes	yes	yes

Visual Alarm	yes	yes	yes	yes	yes	yes	yes	yes

Screen	NO	yes	NO	NO	2.8INCH	2.8INCH	2.8INCH	2.8INCH
Warm up time	6Seconds	6Seconds	6Seconds	6Seconds	30Seconds	30Seconds	30Seconds	30Seconds

Response time	< 3s	< 3s	< 3s	< 3s	< 3s	< 3s	< 3s	< 3s
Auto Calibration	NO	yes	NO	NO	yes	yes	yes	yes
Power supply	4pcs AAA	4pcs AAA	2PCS C Batteries	2PCS C Batteries	rechargeable 3000mAh lithium battery	rechargeable 3000mAh lithium battery	rechargeable 3000mAh lithium battery	rechargeable 3000mAh lithium battery

Sensor life	24 HOURS	24 HOURS	24 HOURS	24 HOURS	400 HOURS	400 HOURS	500 HOURS	500 HOURS

Sensor length	21CM	21CM	44CM	44CM	44CM	44CM	44CM	44CM

working temperature	0-50℃	0-50℃	0-50℃	0-50℃	0-50℃	0-50℃	0-50℃	0-50℃

Working Humidity	10%-75 %RH	10%- 75%RH	10%- 75%RH	10%- 75%RH	10%- 75%RH	10%- 75%RH	10%- 75%RH	10%- 75%RH

ac leak detector

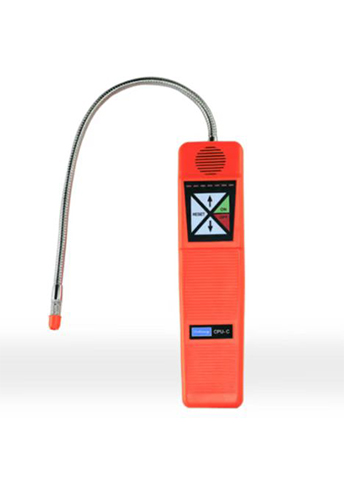

Features of AC Leak Detector

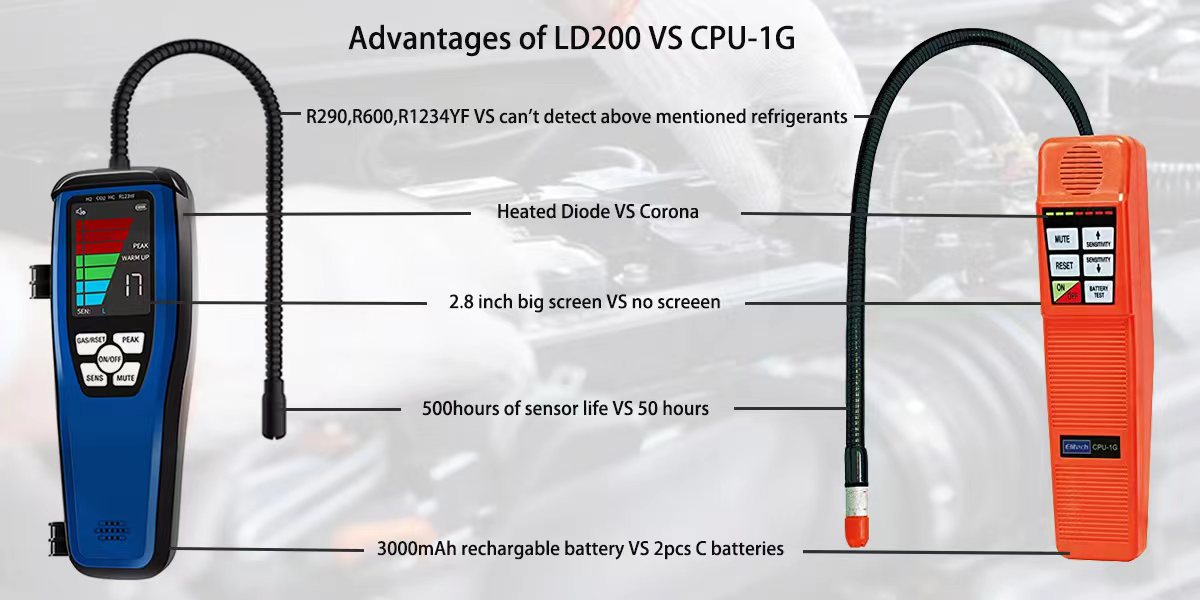

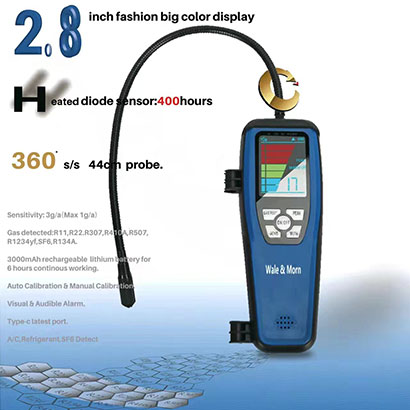

LD-200 leak detectors offer the greatest sensitivity and fastest response to refrigerant leaks
Refrigerant: CFC, HCFS, HFD, HC, HFO, etc
Sensitivity: 3g(0.1 Oz)/year
Power supply: rechargeable lithium battery 3000mAh
Warm-up time: 30 s
Response time:＜3s
Certificate & Approval: CE Rohs, SAE J2791, SAE J2913

Products



Industrial Adhesive Tape

Aluminum Foil Tape

Pure Aluminum Foil Tape Laminate Aluminum Foil Tape Reinforced Aluminum Foil Tape FSK Tape Butyl Foil Tape Aluminum Foil Glass Cloth Tape

PET Tape

PET Blue Holding Tape

Foam Tape

Acrylic Foam Tape PU Foam Tape PE Foam Tape Spooled Foam Tape EPDM Foam Tape CR Foam Tape EVA Foam Tape NBR Foam Tape EPE Foam Tape Opsello Foam Tape Refrigerator Felt Pads

PE Tape

PE Stretch Film Polyethylene Tape White PE Protection Film Weather Seal PE Tape

Paper Tape

Masking Tape Kraft Paper Tape Double Sided Tissue Tape Drywall Joint Tape

Vinyl Tape

Non Adhesive PVC Tape PVC Pipe Wrap Tape Vinyl Electrical Tape

Cloth Tape

Duct Tape

PP Tape

MOPP Tape BOPP Tape PP Strapping Band

Fiberglass Tape

Mono Filament Tape Bi Directional Filament Tape Double Sided Scrim Tape

PO Film

PO Hot Melt Adhesive Film

Polyimide Tape

FAQ of Polyimide Tape



HVAC Parts

AC Pressure Switch

Auto Reset Pressure Switch Manual Reset Pressure Switch Adjustable Pressure Control

HVAC Solenoid Valve

FAQ of HVAC Solenoid Valve

Refrigeration Check Valve

FAQ of Refrigeration Check Valve

Refrigeration Ball Valve

FAQ of Refrigeration Ball Valve

AC Leak Detector

FAQ of AC Leak Detector

Solar Power Thermometer

FAQ of Solar Power Thermometer

Process of AC Leak Detector Production

NO.1

The core component of refrigerant leak detector is an infrared absorption filter. It consists of an infrared source (or emitter) at one end and an infrared energy detector at the other end, between which is a sampling unit of the filter.

NO.2

Like visible light, infrared energy is part of the electromagnetic spectrum. Most materials absorb infrared energy at specific and known wavelengths.

NO.3

The specific wavelength of energy absorbed by a material is called its absorption spectrum. All coolers have similar absorption spectra ranging from 7.5 to 14 microns.
