Vinyl Electrical Tape

Name: Vinyl Electrical Tape
Brand: Changzhou Egret Manufacturing Co., Ltd.

Egret so-called vinyl electrical tape is used a lot for wrapping the wire harness, so it is also called PVC wire harness tape. Important to realize, the main difference with non-adhesive pvc tape is about the glue. The base material is pure PVC resin and coated with aggressive synthetic rubber adhesive. Moreover, the total thickness of vinyl electrical tape can be from 120 microns to 180 microns. In particular, the material has very good elongation rate, high tensile strength. Plus, it is easy to tear by hand, and excellent adhesion properties. Furthermore, it has outstanding softness and conformity, elasticity features. As a result, vinyl electrical tape is very suitable for wrapping wire harness, and with different color for easy identify.

Inquire Now Pdf

egret

Specifications Features Process FAQ

Vinyl Electrical Tape Specifications

Product Characteristics	Performance Data	Test Method
PVC Thickness	110 microns (4.4 mil)	PSTC-133/ASTM D3652
Adhesive Thickness	20 microns(0.8 mil)	PSTC-133/ASTM D3652
Loop Tack	≥ 5 #	GB/T 31125-2014
Color	White/Black/Red	Visual Inspection
Peeling Strength	5.5 N/25mm(19.8 Oz/In)	PSTC-101/ASTM D3330
Tensile Strength	60 N/25mm (13.6 Lb/In)	PSTC-131/ASTM D3759
Elongation at Break	190.00%	PSTC-131/ASTM D3759
V-AC	≥ 5KV

Features of Vinyl Elctrical Tape

Construction: PVC + adhesive
PVC backing with incredible tensile strength
Heavy duty PVC tape suitable for wire harness
Coated with aggressive rubber-based adhesive
Also called vinyl tape, with various color available.
Excellent elongation rate & stretchable features.
Conform well to contours and irregular surfaces and bonds to most substrates

Products



Industrial Adhesive Tape

Aluminum Foil Tape

Pure Aluminum Foil Tape Laminate Aluminum Foil Tape Reinforced Aluminum Foil Tape FSK Tape Butyl Foil Tape Aluminum Foil Glass Cloth Tape

PET Tape

PET Blue Holding Tape

Foam Tape

Acrylic Foam Tape PU Foam Tape PE Foam Tape Spooled Foam Tape EPDM Foam Tape CR Foam Tape EVA Foam Tape NBR Foam Tape EPE Foam Tape Opsello Foam Tape Refrigerator Felt Pads

PE Tape

PE Stretch Film Polyethylene Tape White PE Protection Film Weather Seal PE Tape

Paper Tape

Masking Tape Kraft Paper Tape Double Sided Tissue Tape Drywall Joint Tape

Vinyl Tape

Non Adhesive PVC Tape PVC Pipe Wrap Tape Vinyl Electrical Tape

Cloth Tape

Duct Tape

PP Tape

MOPP Tape BOPP Tape PP Strapping Band

Fiberglass Tape

Mono Filament Tape Bi Directional Filament Tape Double Sided Scrim Tape

PO Film

PO Hot Melt Adhesive Film

Polyimide Tape

FAQ of Polyimide Tape



HVAC Parts

AC Pressure Switch

Auto Reset Pressure Switch Manual Reset Pressure Switch Adjustable Pressure Control

HVAC Solenoid Valve

FAQ of HVAC Solenoid Valve

Refrigeration Check Valve

FAQ of Refrigeration Check Valve

Refrigeration Ball Valve

FAQ of Refrigeration Ball Valve

AC Leak Detector

FAQ of AC Leak Detector

Solar Power Thermometer

FAQ of Solar Power Thermometer

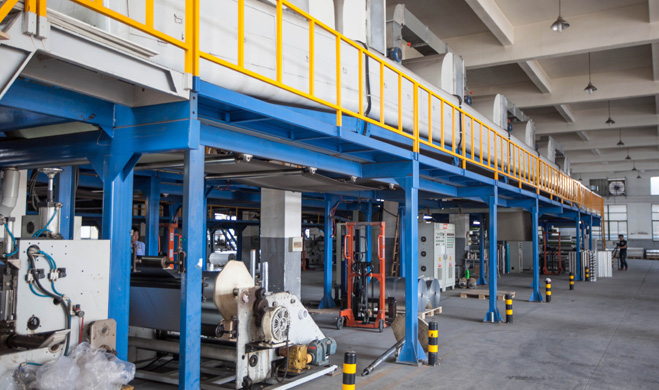

Process of Vinyl Elctrical Tape Production

NO.1

First, we formulate the vinyl electrical tape base material with DOP plasticizer, as well as some percentage of stabilizer. Normally, common production line with rolling machine, printing machine, back coater and cutting machine.

NO.2

Second, the pvc material mainly through the mixing of moving roller, roller rotation and hot rolling to produce 0.07 mm to 0.15 mm thickness of thin film.

NO.3

Third, in the meantime, we use the printer to paint different colors on the membrane. And coated with strong rubber adhesive.

NO.4

Finally, we use our lathe slitting machines to cut the jumbo rolls to different standard or nonstandard width and length of small rolls. Important to realize, the jumbo size is 1020mmx1000m.
